嵌入式產品（ARM/PowerPC）

AHD-B4331-C2 雙CAN總線適用車載

針對極端環境設計的堅固的無風扇超緊湊型四核 ARM 架構系統 搭載 1.0GHz NXP i.MX 6Quad Cortex-A9 四核系統芯片 針對車載而設計的電源保護電路 綜合多媒體輸出接口（LVDS+背光+I2C+聲音+4GPIO） 雙CAN 總線、COM 及 GPIO接口

AHD-B4331-C2



型號

AHD-B4331-C2

處理器

1.0GHz NXP i.MX 6Quad Cortex-A9 SoC

內存

1GB DDR3 SDRAM onboard

存儲

4GB eMMC Flash memory

BIOS

4MB SPI Flash ROM

圖形芯片

Vivante GC2000 GPU

聲音芯片

NXP SGTL5000 low power stereo codec

顯示輸出

Integrated HDMI 1.4 transmitter

網絡

Micrel KSZ9031RNX Gigabit Ethernet transceiver with RGMII support

Wi-Fi/Bluetooth/GPS

IEEE 802.11BGN 1T1R & BT4.0 combo USB module

MAX-7 u-blox 7 GPS/GNSS module

CAN

TI SN65HVD1050 EMC optimized CAN transceiver

USB

SMSC USB2514 USB 2.0 high speed 4-port hub controllers

內部I/O

1* miniPCIe

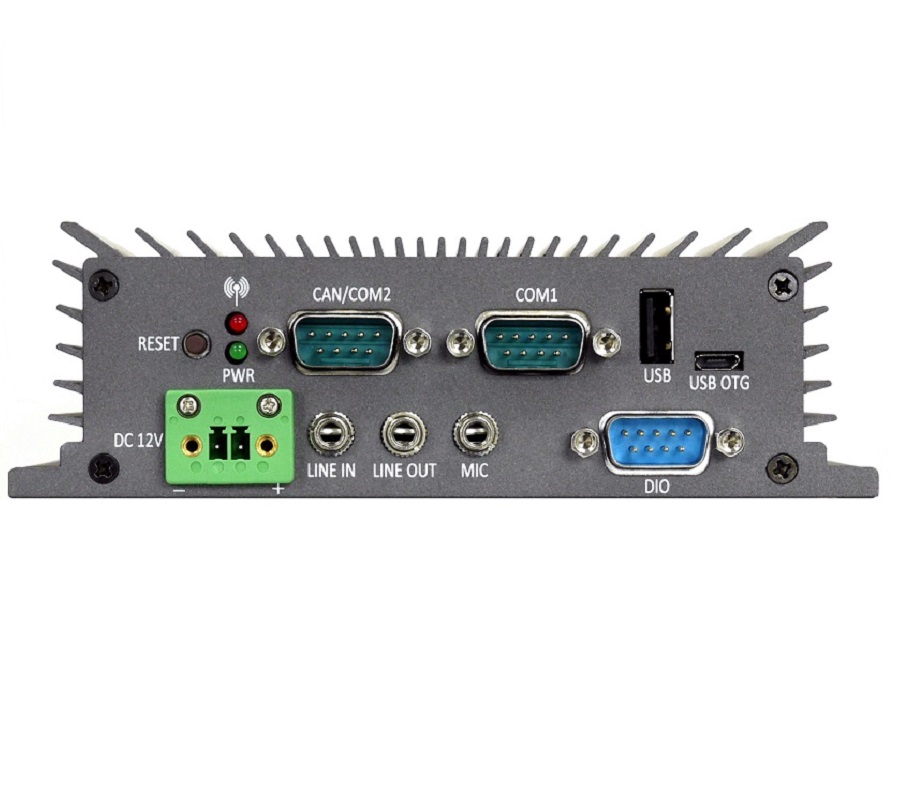

前側I/O

1* USB 2.0 port

1* Micro USB 2.0 type B port supports OTG

1* COM (TX/RX) / 2 CAN bus ports (CAN Protocol specification Version 2.0 B)

1* COM port supports 8-wire DTE mode

1* DIO port supports 8 GPIO (4 GPI + 4 GPO)

3* Audio jacks: Line-in, Line-out and Mic-in

1* Reset button

1* Power & WWAN/Wi-Fi LED

1* 2-pole Phoenix DC jack

后側I/O

2* USB 2.0 ports

1* HDMI port

1* Composite RCA jack

1* Gigabit Ethernet port (supports optional IEEE802.3 at type 2) 1 Micro SD/SPI boot switch

2* Antenna Holes for 3G/Wi-Fi

供電

12V DC-in (typical: 7W)

操作系統

Android 4.4.2, Linux Kernel 3.10.17

看門狗

Integrated watchdog timer supports two comparison points. Each comparison point can interrupt ARM core, 2nd comparison point capable of generating external interrupts on WDOG line.

底蓋功能

Open window with removable door plate to access Micro SD and miniPCIe slots

安裝方式

Wall/DIN Rail/VESA mountable

物理尺寸

150.5mm(W) x 48.1mm(H) x 103.3mm(D)  (5.9" x 1.9" x 4.1")

重量

0.673kg (1.48lbs)

工作溫度

-20°C ~ 65°C

工作濕度

10% ~ 90% @ 45°C (non-condensing)

可選配件

WIFI模塊
